Our setup process consists of two stages, each requiring specific actions to be completed. Stage one involves adding the MDinteractive FHIR app to your FHIR API eClinical module, followed by stage two, which entails choosing the group of patients to be shared with MDinteractive using bulk FHIR. Completing both stages is necessary for full setup and functionality.
Stage one

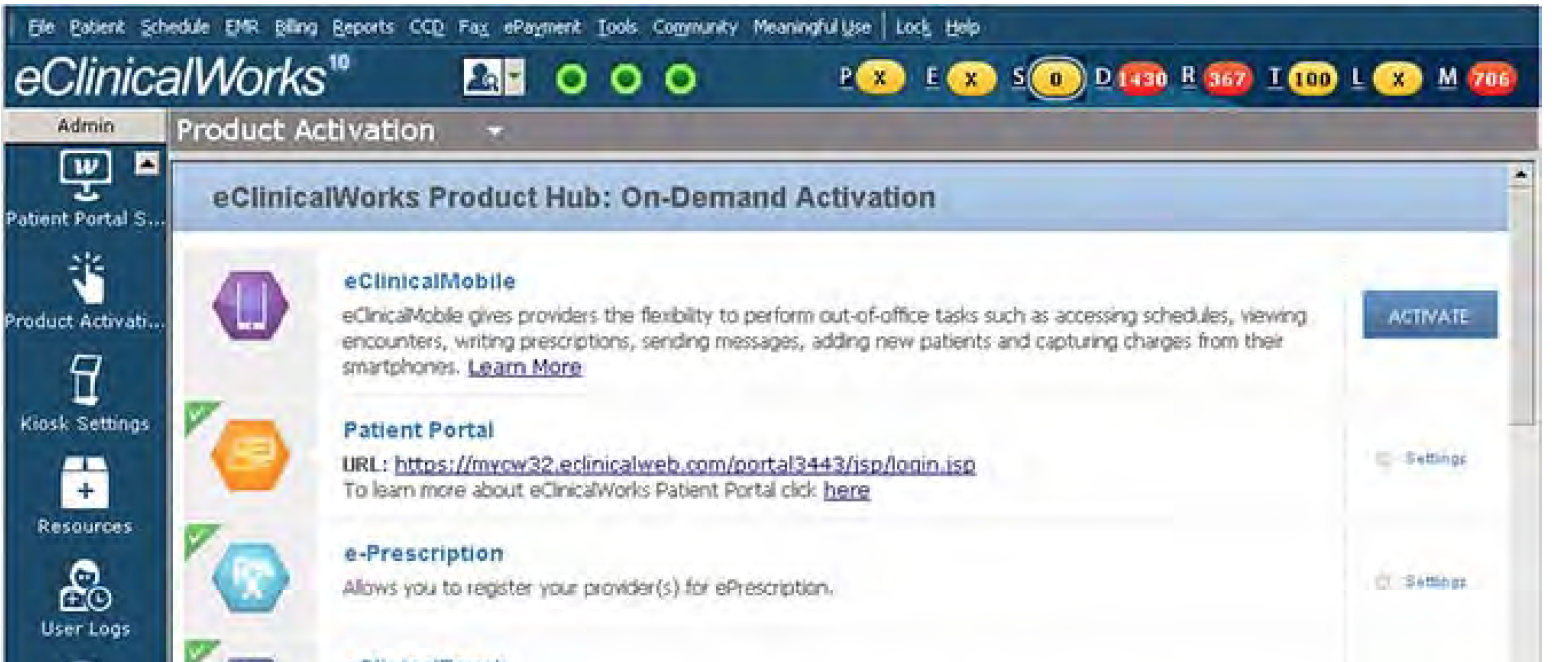

From the Admin band, click the Product Activation icon.

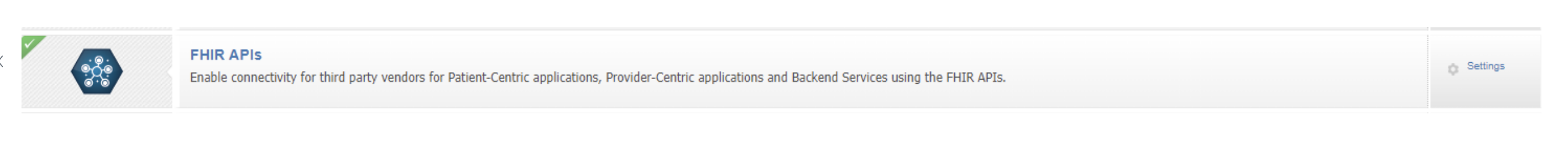

EHR users need to activate FHIR on eclinical. It's under product activation, listed as FHIR APIs. If it's not showing on their product activation list, they may have to ask their eclinical Support and Maintenance contact (SAM) to add it so that they can activate it.
Then go to eclinical FHIR App gallery and choose to 'Set up' "Backend/Bulk Access Apps':
Enter the activation code c746181b00f94974 on 'Add new app":

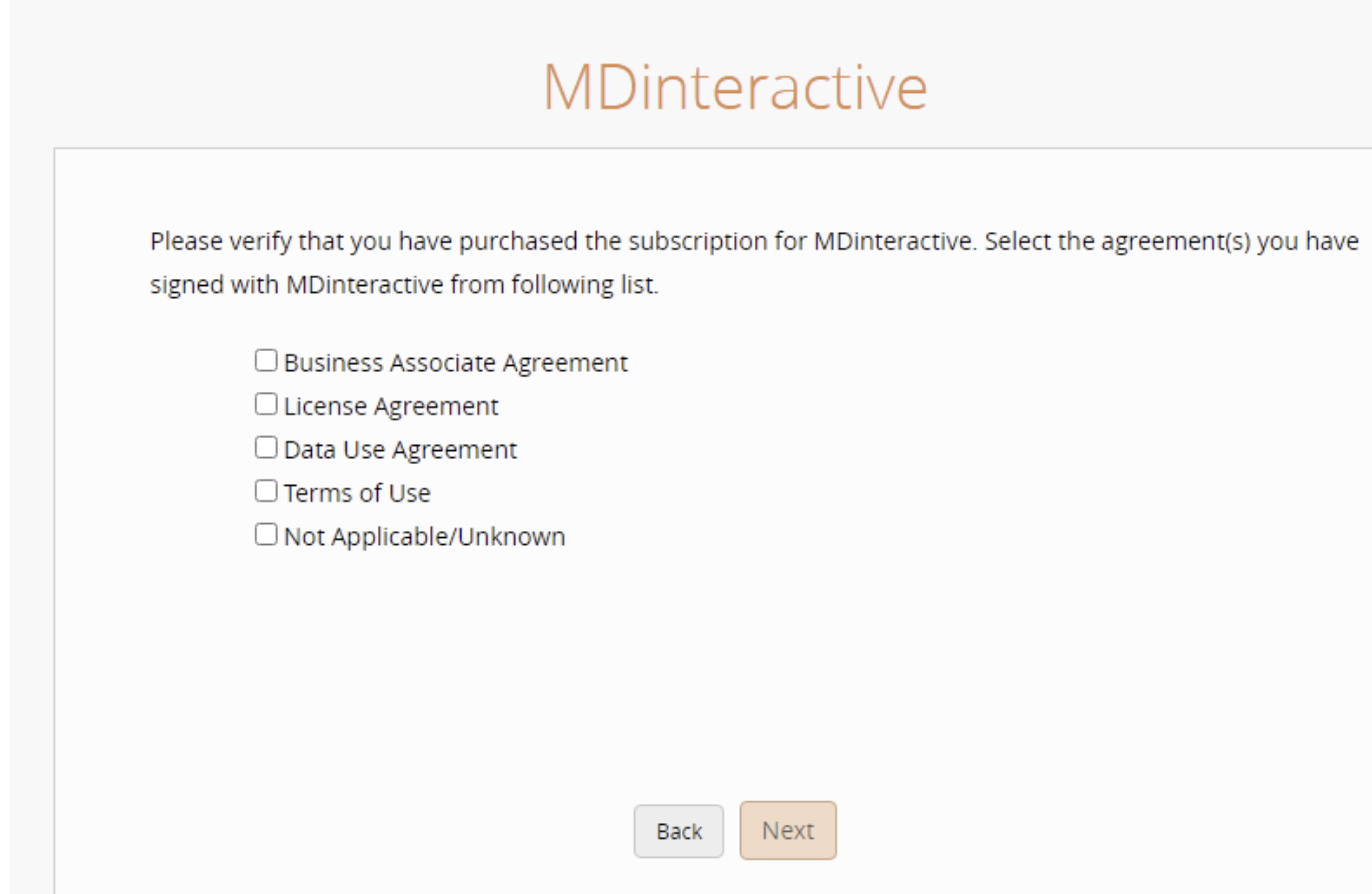

Click 'Not Applicable/Unknown':
After the eClinical user adds the MDinteractive app, your screen appears as follows:
After adding the MDinteractive FHIR App, please email support@mdinteractive.com to request the App to be activated on MDinteractive side.
Stage two
After MDinteractive activates the eClinicalWorks user, the app is displayed with Activate button on the EMR. eClinicalWorks user will have to click on the Activate button to enable the app. Path: Admin > Product Activation > FHIR APIs > Bulk/Backend Apps
After activation, users will need to select or create registry groups to share with MDinteractive. Registry groups, or patient cohorts, are groups of patients who meet specific clinical conditions established by a practice—for example, all patients with an encounter between January 1 and March 30. These groups are utilized by the MDinteractive bulk/backend FHIR application to receive data from the eClinicalWorks EMR.
Stage two has two parts, and both are required:
- Create a registry group (Main Menu > Registry).
- Enable that group for the MDinteractive app (Admin > Product Activation). This part requires eClinicalWorks administrator access and is often done by a different person than part 1.
No patient data reaches MDinteractive until the group appears in the Enabled Groups list in part 2. Creating the group in part 1 is not enough on its own.
Part 1 of 2: Creating a Group for Bulk/Backend Applications
Path: Main Menu > Registry > Registry
Groups can be created using the Registry module in the EMR:
Note: For more information about creating queries, refer to the V11 EMR User Guide - General(Browser) on the my.eclinicalworks.com Customer Portal
To create a group:

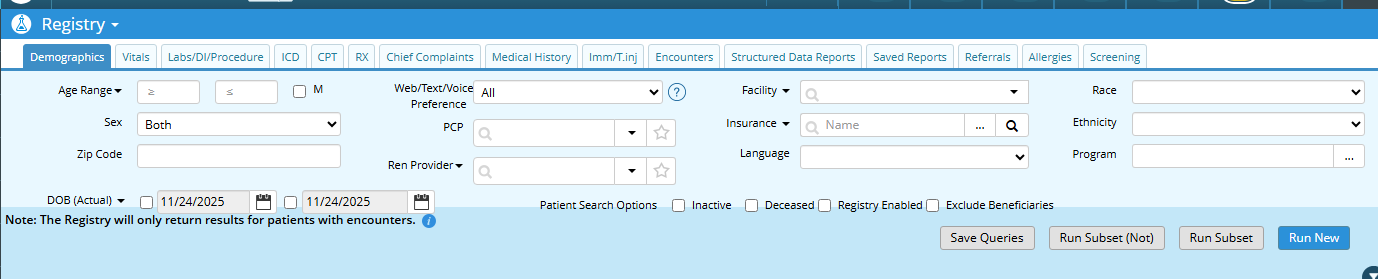

1. On the Registry screen, leave all filters as they are and click “Run New.” Please do not add any additional filters or criteria, as this may limit the group to a smaller subset of patients.
2. Then click Save Queries button:
3. A confirmation pop-up message displays. Click OK on the confirmation pop-up message:
4. On the Save Registry Query Report window, enter a clear report description in the Report Criteria field. In the Report Criteria box, name the report something specific and descriptive, such as “FHIR Bulk Group – All Patients.” Please avoid vague names like “Test Group,” as clear naming helps identify the group’s purpose for bulk/backend FHIR access.
5. Check the Save the query as a group to use with the backend/bulk access apps box.
Checking this box makes the group available to bulk/backend apps. It does not yet enable it for MDinteractive. You will do that in part 2 below.
6. Click OK to save the reports as a group:
The report is assigned an auto-generated group ID that displays on the Manage Groups window.
The group now exists, but MDinteractive still cannot see it. A saved group is not visible to the MDinteractive app until it is enabled for that app in Product Activation. Continue to Part 2 of 2: Enabling a Group for Bulk/Backend Applications below to finish setup.
Part 2 of 2: Enabling a Group for Bulk/Backend Applications (required)
Who does this: this part requires eClinicalWorks administrator access to Product Activation, and is often a different person from whoever created the registry group in part 1. If you created the group but do not have admin access, forward this section to your eCW administrator. Setup is not complete until it is done.
Path: Admin > Product Activation > FHIR APIs > Bulk/Backend Apps
To enable a group:
1. Navigate to the Bulk/Backend Apps gallery.

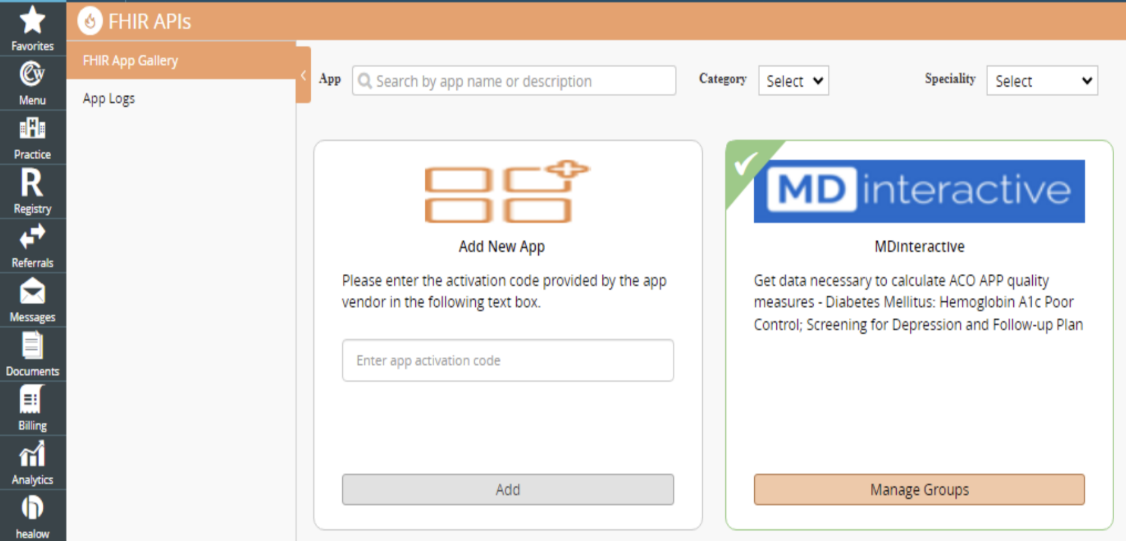

2. Click the Manage Groups button on the app tile to be enabled:

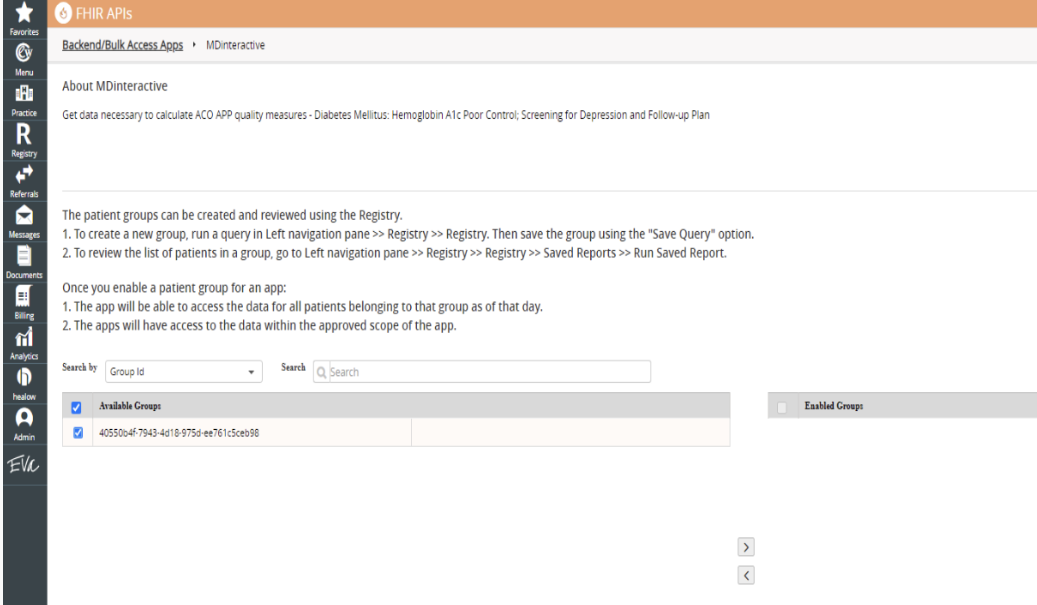

3. In the Available Groups list on the left, check the box next to your group. Groups are listed by the auto-generated Group ID assigned when you saved the registry query in part 1, so use the Search by: Group Id field if the list is long.
4. Click the > button below the lists to move the selected group into the Enabled Groups list on the right:
Once the group is enabled for the app, the app can access the data for all patients who belong to that group. The apps can access data within the approved scope of the application.
Confirm before you finish: your group must now appear in the Enabled Groups list on the right. If it is still in Available Groups on the left, it is not enabled, and MDinteractive will receive no patient data even though the app shows as activated and the connection may otherwise look correct.
Reviewing/Updating a Group for Bulk/Backend Applications
Path: Main menu > Registry > Registry > Saved Reports
To review/update a group:
1. On the Registry window, click the Saved Reports tab.
2. Click the ellipses button and select a report:
3. Click the Run Saved Report button:
Run Saved Report - Confirmation pop-up message displays.
4. Click OK on the confirmation pop-up to update and review the list of patients:
The group data is updated when the report is run, and the third-party application has access to the patient data.
Troubleshooting
MDinteractive reports that the connection is failing, or no patient data is arriving. The most common cause is that the registry group was created but never moved into the Enabled Groups list for the MDinteractive app. Go to Admin > Product Activation > FHIR APIs > Bulk/Backend Apps, click Manage Groups on the MDinteractive tile, and confirm your group appears under Enabled Groups on the right. If it is on the left under Available Groups, follow part 2 above.
References:
https://fhir.eclinicalworks.com/ecwopendev/documentation#
https://my.eclinicalworks.com/ (V11 EMR User Guide)
